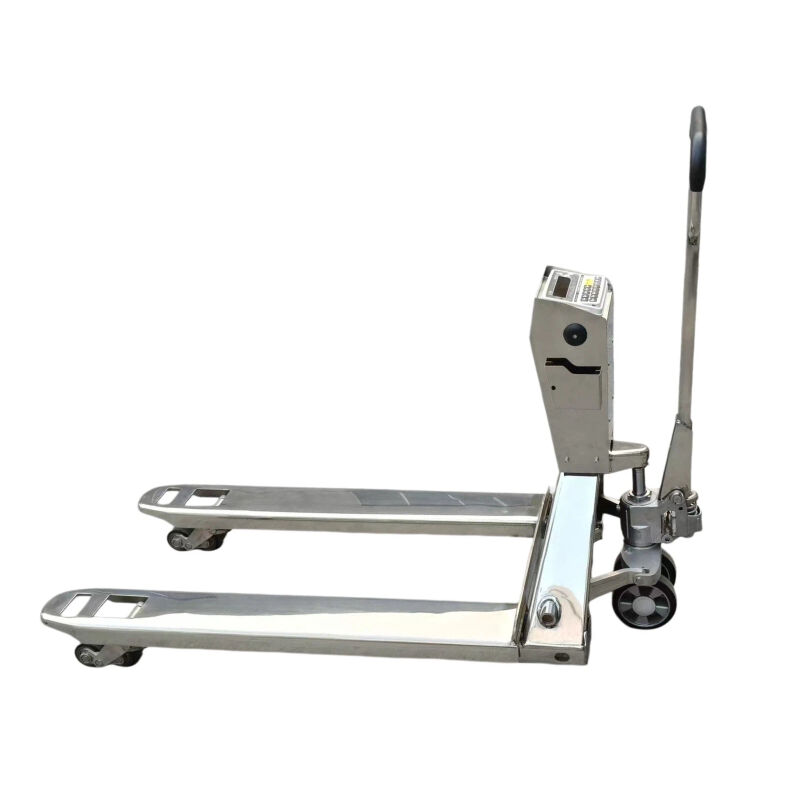

SINOLIFT HL20SS HL30SS Customized Stainless Steel Scale Pallet Truck with Built in Printer

Product Introduction:

The SINOLIFT HL20SS and HL30SS are heavy-duty, stainless steel scale pallet trucks with built-in thermal printers, custom-designed to combine efficient material transport with highly accurate mobile weighing. Ideal for harsh, wet, or hygienic environments like the food processing, chemical, and brewing industries, these IP67-rated washdown units prevent rust while ensuring reliable performance. Designed for optimum maneuverability and workflow efficiency, they feature a high-visibility display and long-lasting battery, allowing operators to seamlessly weigh, print, and handle loads up to 3000kg in a single step.

Key Features:

Core Specifications & Dimensions

Load Capacity: 2000 kg (HL20SS) / 3000 kg (HL30SS) with a minimum weighing capacity of 10 kg.

Fork Dimensions: Available in lengths of 1150 mm or 1220 mm, and widths of 550 mm or 685 mm.

Lifting Range: Minimum lowered height of 95 mm up to a maximum lift height of 115 mm.

Wheels: Equipped with durable polyurethane wheels for smooth transport (Rear: 2x ¢180x50 mm; Front: 4x ¢80x70 mm).

Construction & Operational Environment

Hygienic Washdown Design: Manufactured from heavy-duty stainless steel with an IP67 rating, allowing for easy cleaning and preventing rust in wet, damp, or corrosive industrial environments.

Waterproof Sensors: Features IP68-rated load cells, making it a perfect fit for the stringent hygiene standards of the food and chemical sectors.

Custom non-standard adaptation: Built upon the solid logistics design of the CPS Hand Pallet Truck, customized specifically to save time and expenses by allowing operators to estimate shipping weights while moving goods.

Weighing System & Electronics

High-Accuracy Scale: Utilizes a four-shear-beam load cell construction to provide exceptional stability and accurate weighing, even on slightly uneven surfaces.

Built-in Thermal Printer: Allows for immediate, on-the-go printing of weight tickets and documentation for seamless receiving and shipping applications.

High-Visibility Display: Features a high-contrast LED/LCD display that is easy to read from any distance or angle, operated via full-rubber numeric and function keys.

Advanced Scale Functions: Includes Auto Tare, Zero, Lb/kg unit switching, a counting mode, and the summation of weights with sequence numbers for totalizing capabilities.

Long-Lasting Power: Powered by a rechargeable DC 6V/5Ah battery offering up to 100 hours of continuous use, complete with a programmable sleep mode and auto power-off to conserve energy.

Ergonomics & Convenience

Storage Capabilities: Includes two convenient built-in storage boxes, ideal for securely holding manuals, tools, or shipping documents during transport.

Effortless Handling: The ergonomic hydraulic lift pump assembly ensures optimum maneuverability and makes lifting heavy loads simple and efficient.

Applications:

The SINOLIFT HL20SS and HL30SS stainless steel scale pallet trucks are engineered for demanding industrial environments where both accurate mobile weighing and strict hygiene are critical. They are the ideal solution for the food processing, brewing, and pharmaceutical industries, as their IP67-rated washdown construction allows for frequent cleaning to meet rigorous sanitary standards. Additionally, they excel in chemical plants and cold storage facilities that frequently experience damp, humid, or corrosive conditions. Beyond specialized environments, these trucks are highly valuable in general warehousing, material handling, and shipping or receiving applications. The built-in printer streamlines logistics by allowing operators to verify cargo weights, print physical records, and transport pallets simultaneously, significantly reducing operational downtime.
