| Herkunftsort: | China |
|---|---|
| Markenname: | SINOLIFT |
| Zertifizierung: | CE, ISO9001 |
| Modellnummer: | SW |
| Min Bestellmenge: | 1 Satz |
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Sandard-Exportverpackung |
| Lieferzeit: | 15 Tage |
| Zahlungsbedingungen: | L/c, d/a, d/p, t/t |
| Versorgungsmaterial-Fähigkeit: | 1000 Sätze/Mund |
| Kapazität: | 159, 181, 227kg | Lastschwerpunkt: | 254, 305 mm |
|---|---|---|---|
| Max. Gabelhöhe (2-stufig): | 2500, 1250 mm | Masthöhe: | 3580mm |
| Gabellänge: | 570mm | Nettogewicht: | 72, 77, 79kg |
| Anwendung: | Industriell abgelegt | Nachgarantieservice: | Nachgarantieservice |
Product Name:

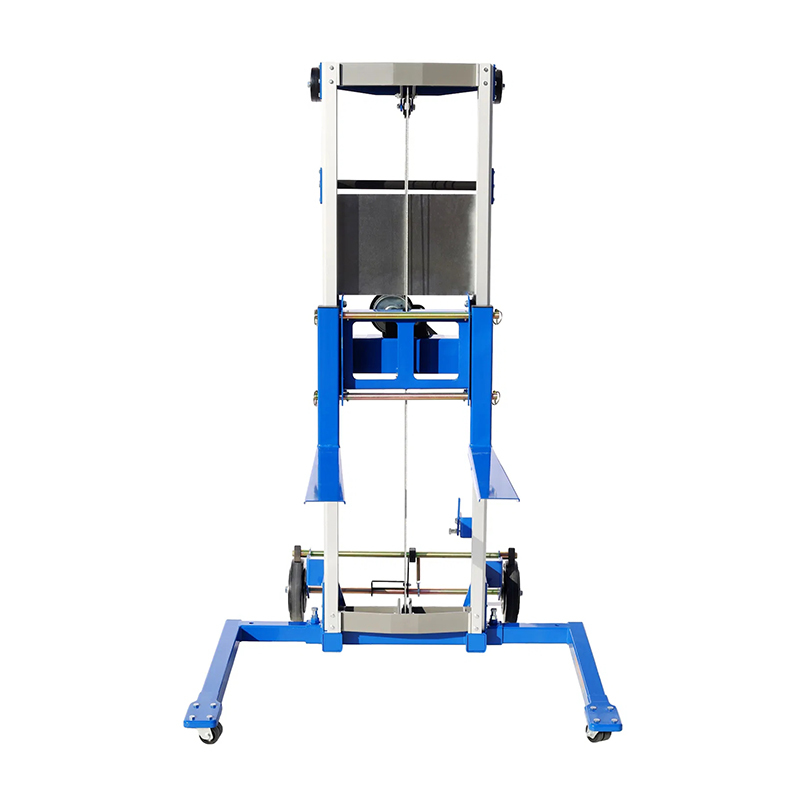

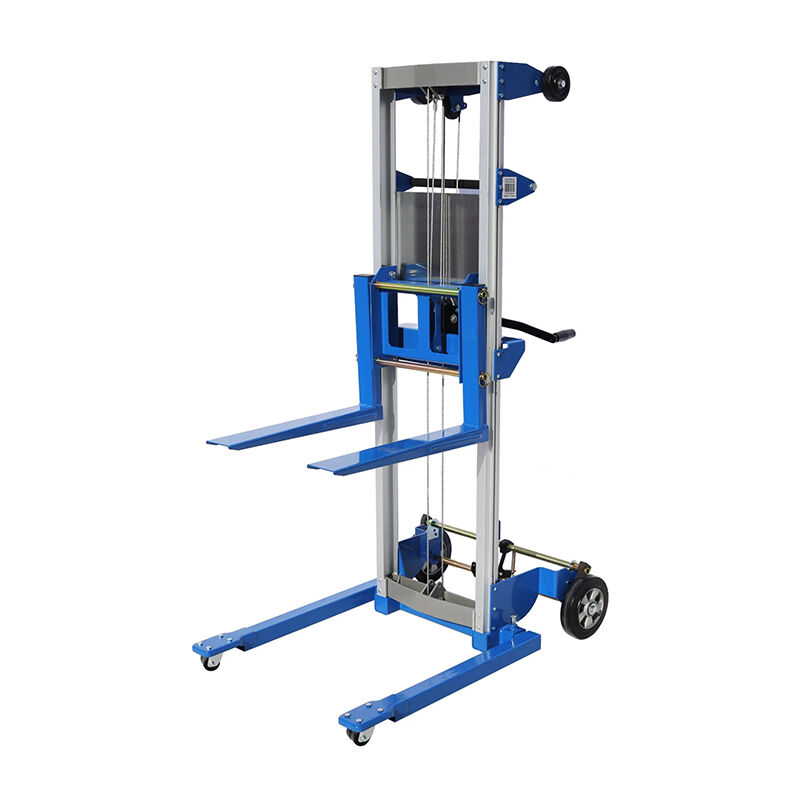

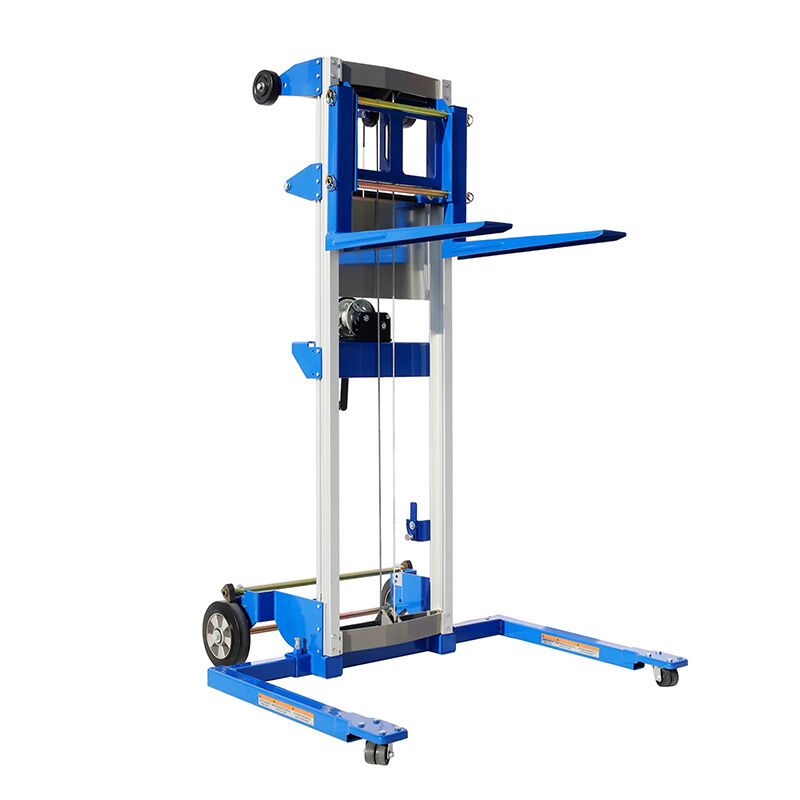

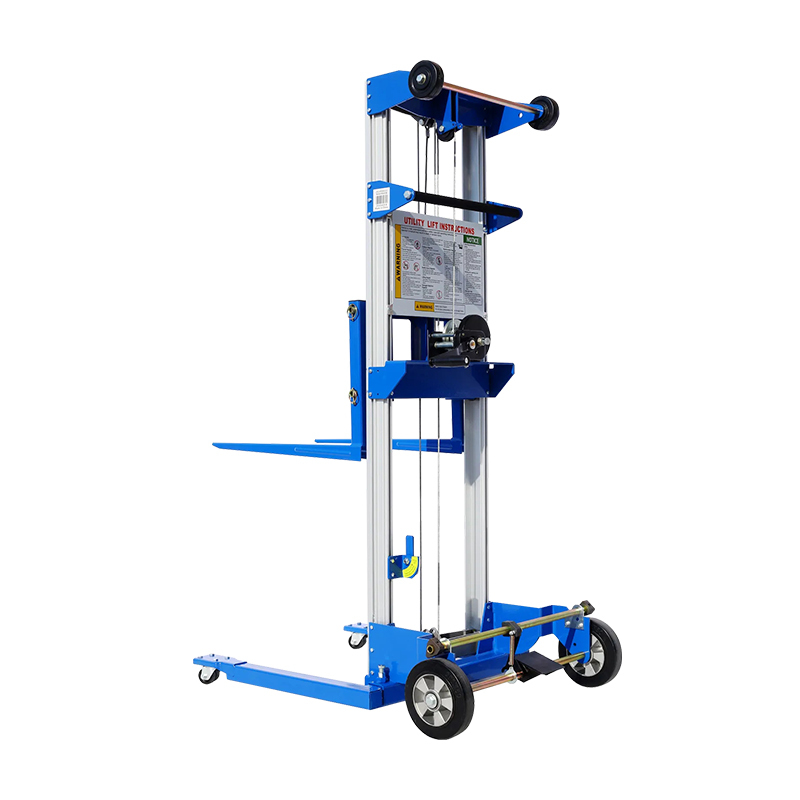

SW Series Manual Hand Winch Stacker with Straddle Legs – Superior Stability for Demanding Loads
Product Description:
Engineered for unmatched stability and safety, the SW Straddle Legs Stacker is your go-to solution for heavier or wider pallets. It retains all the portability and ease of use of our standard model, while the innovative straddle leg design ensures confident lifting and transportation of bulky loads.
Key Features:
The sturdy straddle legs with a 1100mm fork width provide a wide, stable base, preventing tipping and ensuring operator safety when handling bulky or off-center loads.
Despite its robust build, it remains highly portable. Weighing 57kg and equipped with smooth-swivel casters, it can be easily guided by a single operator in tight spaces.
The reliable manual winch with a safety self-locking mechanism halts instantly when released, guaranteeing precise load control and secure lifting operations.
Constructed from high-grade steel, it offers a 181kg or 227kg load capacity. The detachable chassis ensures easy transport in a light truck, making it ready for any job site.
Select the model that fits your task: opt for greater lifting height (2.5m) or higher load capacity (227kg).
Application Scenarios:
Warehouses & Distribution Centers
Manufacturing & Assembly Plants
Bulk Retail Stores & Garden Centers
Any application requiring extra stability for wide or heavy loads
Product Specifications:
| Model | SW159 | SW181 | SW227 |
| Capacity | 159KG | 181kg | 227kg |
| Load Centre | 254mm | 305mm | 305mm |
| Max. Fork Height (2 Stage) | 2500mm | 2500mm | 1250mm |
| Mast Height | 3580mm | 3580mm | 3580mm |
| Min. Lifting Fork Height | 51mm | 51mm | 51mm |
| Stabilizing Forks Width Outer | 730 - 1080mm | 730 - 1080mm | 730 - 1080mm |
| Stabilizing Forks Width Inner | 560 - 900mm | 560 - 900mm | 560 - 900mm |
| Fork Length | 570mm | 570mm | 570mm |
| Net Weight | 77kg | 72kg | 79kg |
