| Herkunftsort: | China |
|---|---|
| Markenname: | SINOLIFT |
| Zertifizierung: | CE, ISO9001 |
| Modellnummer: | WFH |
| Dokumentieren: | WFH SW BC.pdf |
| Min Bestellmenge: | 1 Satz |
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Sandard-Exportverpackung |
| Lieferzeit: | 15 Tage |
| Zahlungsbedingungen: | L/c, d/a, d/p, t/t |
| Versorgungsmaterial-Fähigkeit: | 1000 Sätze/Mund |
| Typ: | Handbuch | Kapazität: | 181 kg, 227 kg |
|---|---|---|---|
| Lastschwerpunkt: | 254 mm, 305 mm | Max. Gabelhöhe (2-stufig): | 2500 mm, 1250 mm |
| Gabellänge: | 570 mm, 570 mm | Nettogewicht: | 66kg, 60kg |
| Nachgarantieservice: | Nachgarantieservice | Anwendung: | Industriell abgelegt |
Product Name:

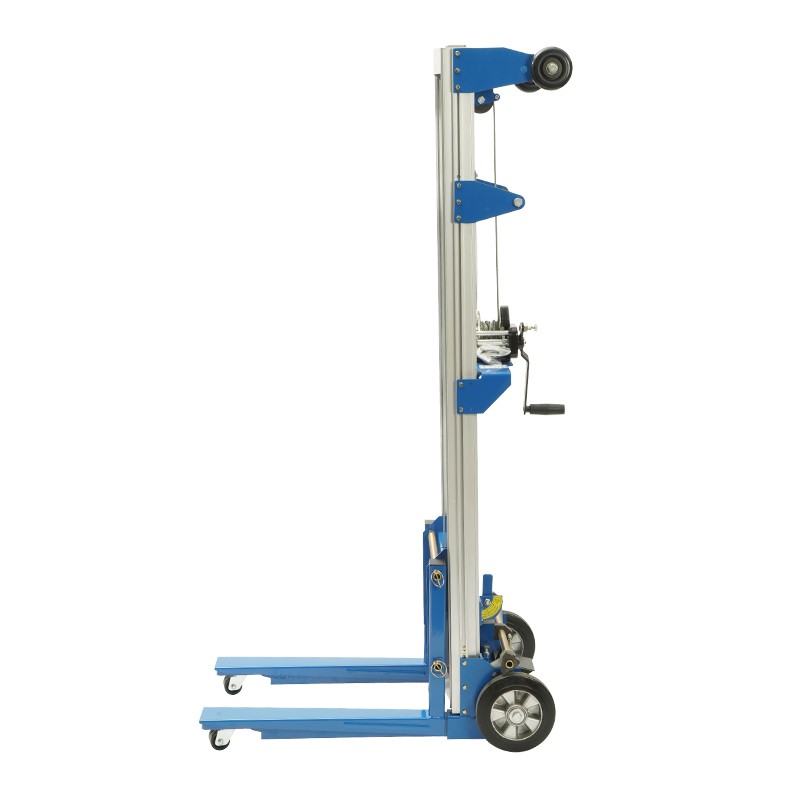

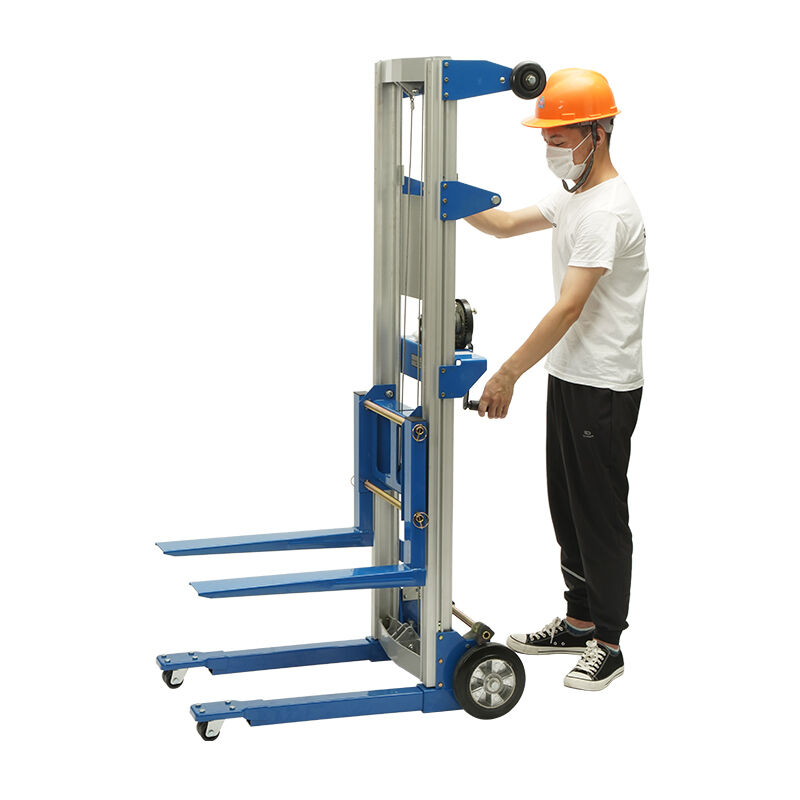

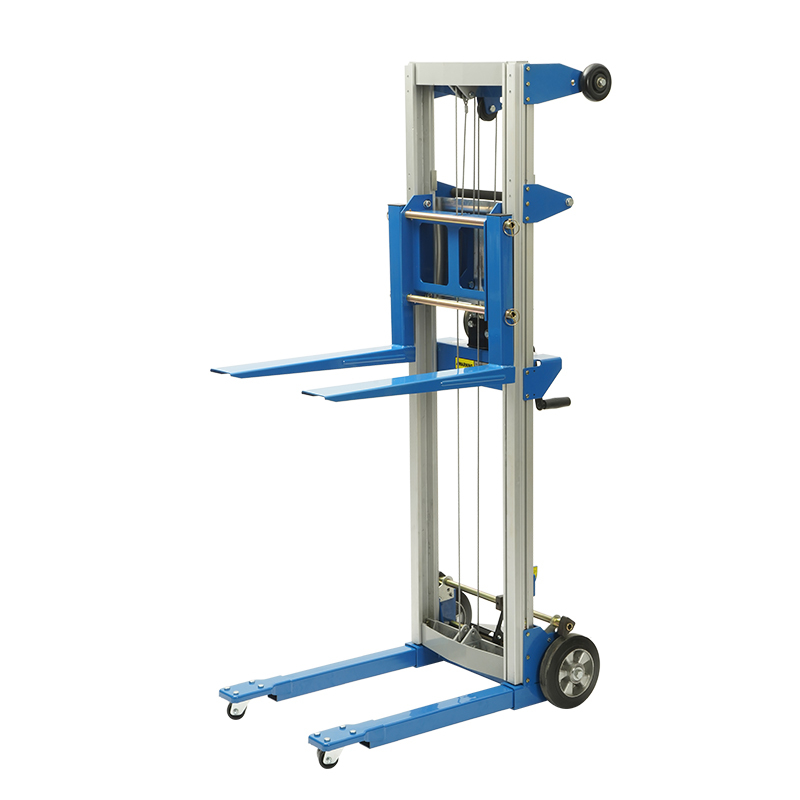

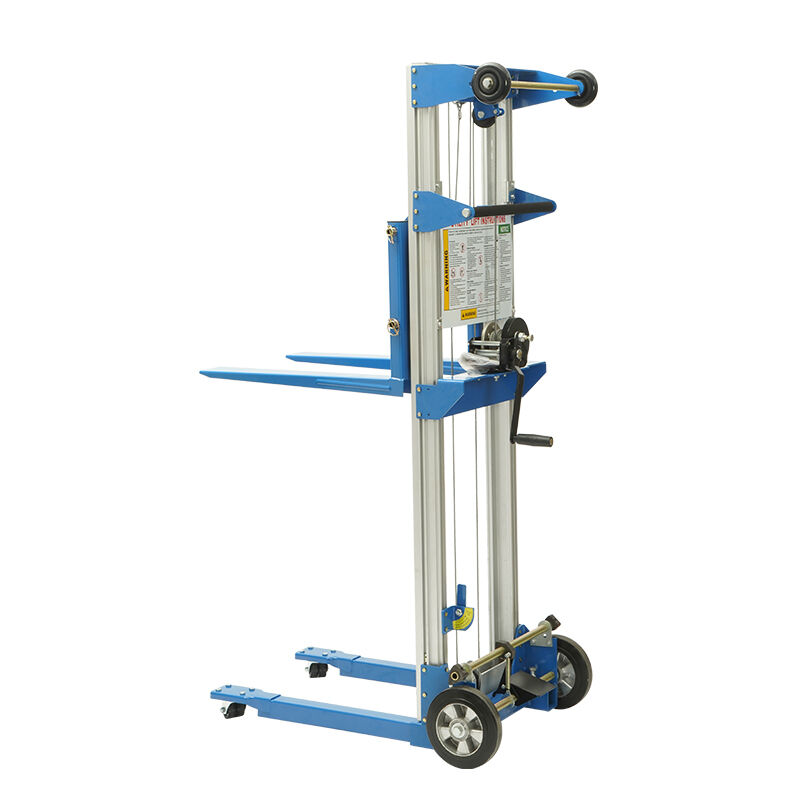

WFH Series Manual Hand Winch Stacker – Effortless Lifting, One-Person Operation
Product Description:
The ultimate lightweight lifting solution for your warehouse or workshop. Designed for single-person operation, the WFH Stacker combines robust strength with exceptional portability, making daily material handling tasks faster, safer, and far less labor-intensive.
Key Features:
Weighing as little as 51kg with a compact chassis and smooth-swivel casters, one person can easily move and position it around tight spaces.
The high-quality manual winch features a safety self-locking mechanism that stops instantly when released, allowing for millimeter-precise height control and secure loading.
Constructed from high-grade steel, this stacker reliably handles loads of 181kg or 227kg, ensuring long-term durability under daily use.
The precision-engineered detachable chassis enables the stacker to be easily disassembled and transported in a light truck, ready for work at any job site.
Choose from two models tailored to your needs: a higher-lift model (2.5m) or a heavier-capacity model (227kg).
Application Scenarios:
Warehouses & Logistics Centers
Retail Stock Rooms & Shops
Small Workshops & Factories
Equipment Installation & Maintenance Sites
Product Specifications:
| Model | WFH181 | WFH227 |
| Capacity | 181kg | 227kg |
| Load Centre | 254mm | 305mm |
| Max. Fork Height (2 Stage) | 2500mm | 1250mm |
| Mast Height | 1805mm | 1805mm |
| Total Depth (Front to Back) | 1080mm | 1080mm |
| Min. Lifting Fork Height | 90mm | 90mm |
| Base Legs Max. Width | 1100mm | 1100mm |
| Lifting Forks Width Outer | 515mm | 515mm |
| Lifting Forks Width Inner | 310mm | 310mm |
| Stabilizing Forks Width Outer | 725 - 1100mm | 725 - 1100mm |
| Stabilizing Forks Width Inner | 545 - 920mm | 545 - 920mm |
| Fork Length | 570mm | 570mm |
| Net Weight | 66kg | 60kg |
