| Herkunftsort: | CHINA |
|---|---|
| Markenname: | SINOLIFT |
| Zertifizierung: | CE |
| Modellnummer: | DC |
| Min Bestellmenge: | 1 Set |
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Sandard-Exportverpackung |
| Lieferzeit: | 15 Tage |
| Zahlungsbedingungen: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Versorgungsmaterial-Fähigkeit: | 5000 Sätze/Mund |
| Universal-Fit-Gabelstapler-Antriebsradbaugruppe: | Universal-Fit-Gabelstapler-Antriebsradbaugruppe | Modell: | Z130D750-24A1-26,5S |
|---|---|---|---|
| Nennspannung: | 24VDC | Nennleistung: | 750W |
| Zertifizierung: | CE,ISO9001 | Garantie: | 1 Jahr |
Product Name

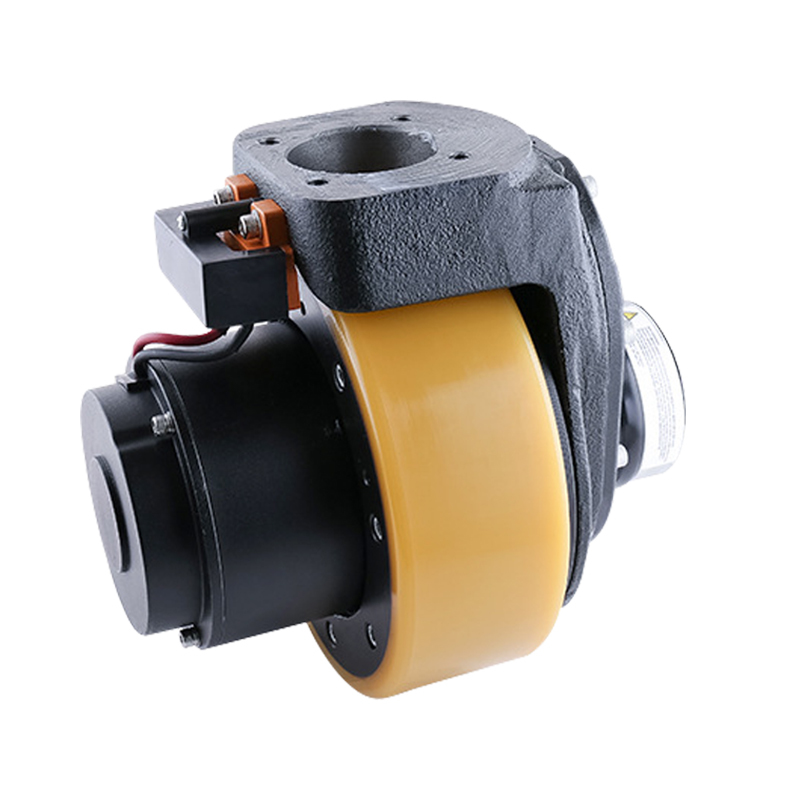

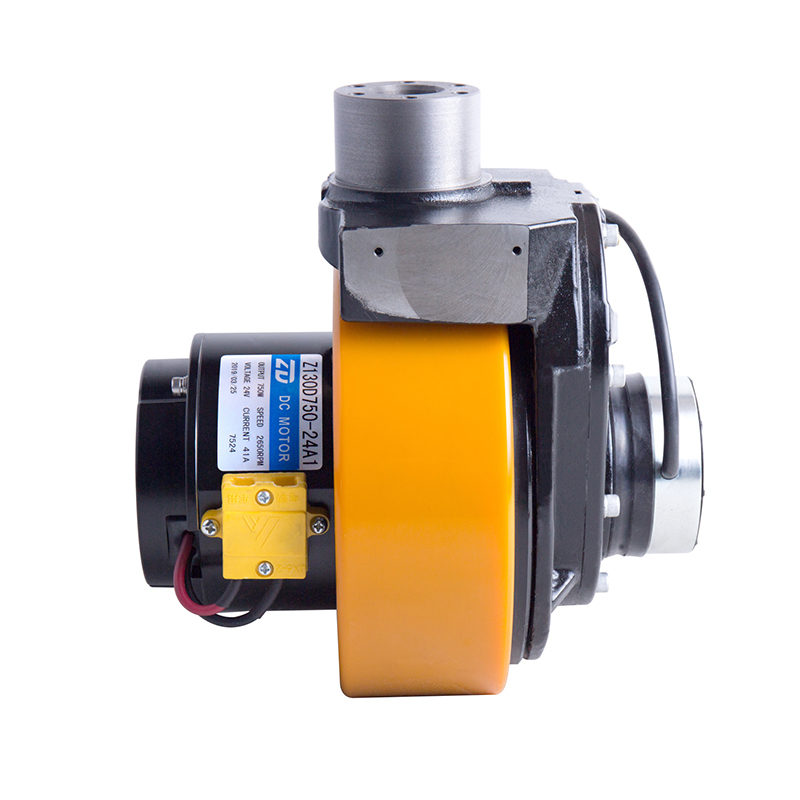

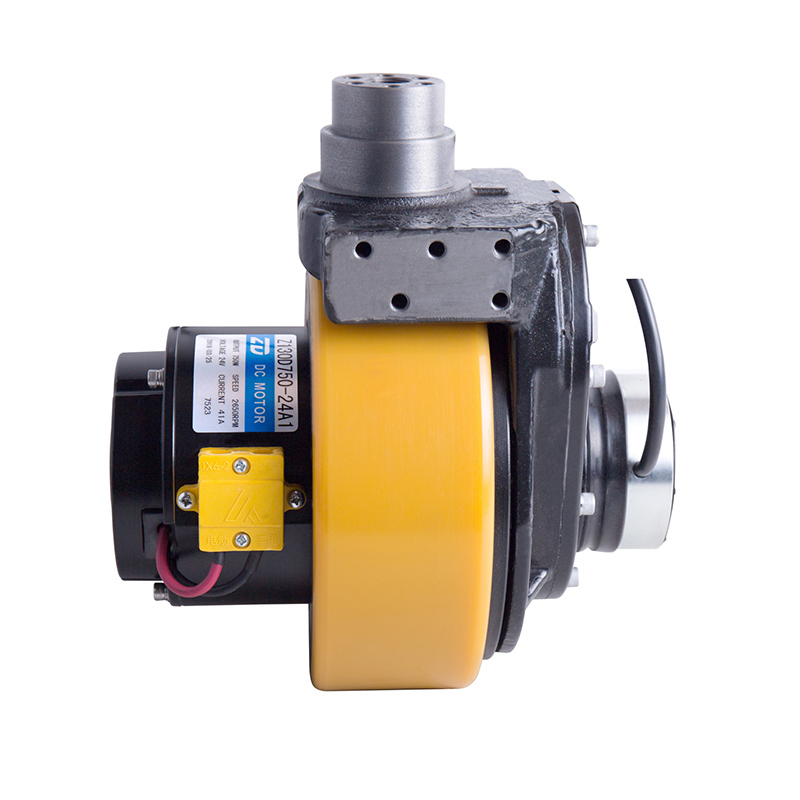

Universal Fit Forklift Drive Wheel Assembly
Product Description:
Our newly upgraded Drive Wheel Assembly delivers powerful and silent performance. Its 750W pure copper motor provides high torque for effortless operation and slope handling. Built for durability with strict material selection, it ensures reliable, energy-efficient performance under heavy loads.
Key Features:
Product Specifications
| Standard Model | |
| Model | Z130D750-24A1-26.5S |
| Rated Voltage | 24VDC |
| Rated Power | 750W |
| Rated Current | 41A±10% |
| Rated Speed | 2650rpm±10% |
| Rated Torque | 2.7N.m |
| No-load Current | ≤11A |
| No-load Speed | 3100rpm±10% |
| Duty Cycle | S2-45min |
| Insulation Resistance | >20MΩ |
| Brush Life | 1200h |
| Dielectric Strength | 660V/S |
| Insulation Class | F |
| Protection Class | IP44 |
| Reducer Model | SJ-210-003 |
| Reduction Ratio | 24.685K |
| Brake Voltage | 24VDC |
| Brake Torque | 6N.m |
| Ambient Temperature | -10°C ~ +40°C |
| Noise | <70dB(A) (L=100cm) |
| Through-Hole Model | |
| Model | Z130D750-24A1-26.5S |
| Rated Voltage | 24VDC |
| Rated Power | 750W |
| Rated Current | 41A±10% |
| Rated Speed | 2650rpm±10% |
| Rated Torque | 2.7N.m |
| No-load Current | ≤11A |
| No-load Speed | 3100rpm±10% |
| Duty Cycle | S2-45min |
| Insulation Resistance | >20MΩ |
| Brush Life | 1200h |
| Dielectric Strength | 660V/S |
| Insulation Class | F |
| Protection Class | IP44 |
| Reducer Model | SJ-210-001 |
| Reduction Ratio | 24.685K |
| Brake Voltage | 24VDC |
| Brake Torque | 8N.m |
| Ambient Temperature | -10°C ~ +40°C |
| Noise | <70dB(A) (L=100cm) |
